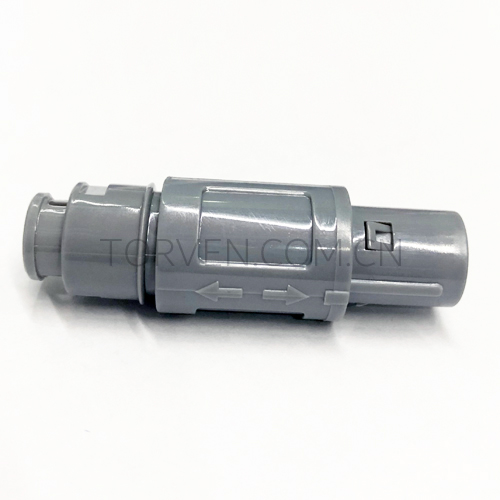

Straight piug 2P series solder contact with/without back nut for strain relief
● Security of the Push-Pull self-latching system
● Multi pole types 3,16,19,26pin
● Available in solder or print contacts
● High packing density for space savings
● Different color for plug cap and conical nuts to prevent mismatching
● Keying system for connector alignment
● Full plastic shell for standing high temperature
● Strain relief color: Black, blue,grey,red,yellow,green
Housing material
PSU UL 94 V-0 ,Grey
Contact material
H59-1 phosphor bronze,gold plated
Insulator insert material
PPS, UL 94 V-0,natural
Plastic back nut material
PSU UL 94V-0,Grey
Protection rate
IP65
Mechanical life
1000 cycles
Test Voltage
1200V AC
Insulation resistance
5000MΩ min.
Working temperature
-50~+125°C
